We like to go after the complex projects, especially the ones no one wants. We frequently work on multiple commercial and industrial projects in varying capacities and roles at a time.

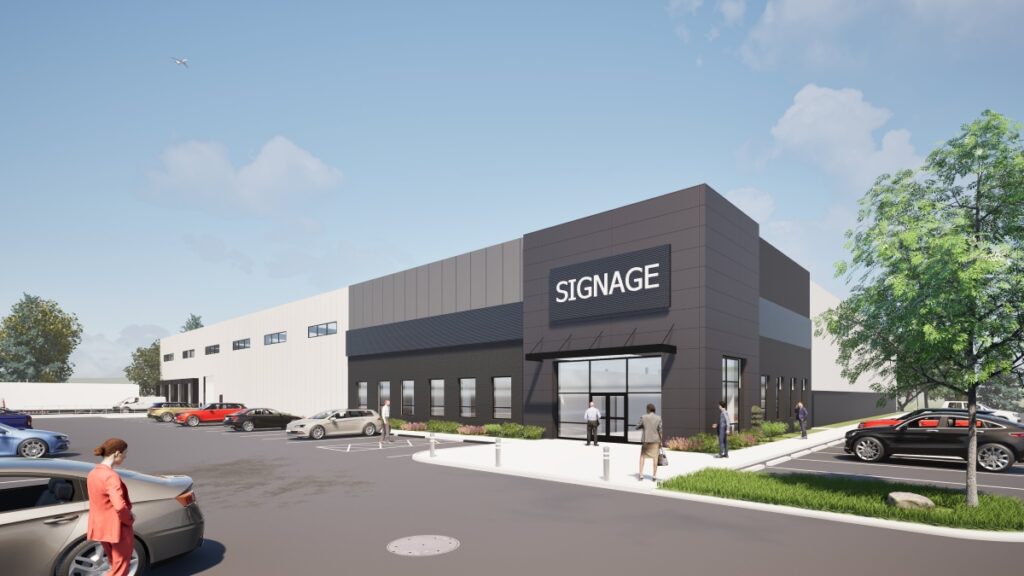

Butler Model 50k

Designed with growing logistics and supply chain operations in mind, this 50,000 square-foot pre-engineered Butler model is a fantastic way to revamp your company’s headquarters. Whether you need a manufacturing facility, a packaging center, ample warehouse space, or a transportation depot, this model is ideal for businesses that require a large industrial structure. This model contains the following features:

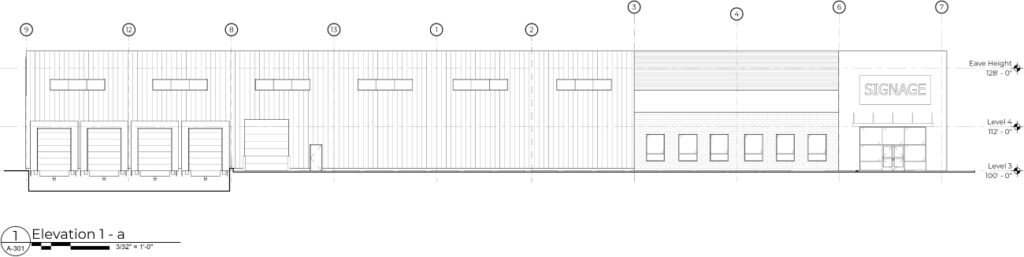

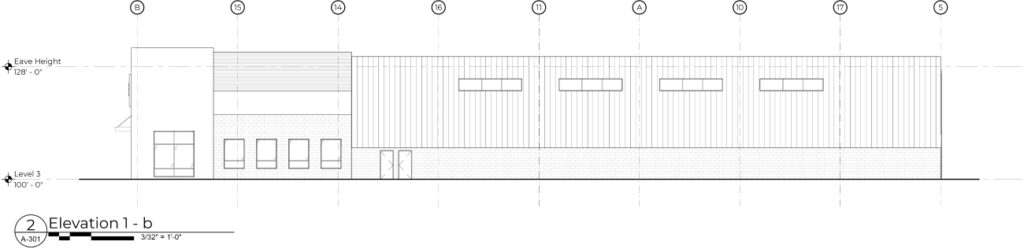

Building dimensions: 200’ x 250’ x 28’ low eave

(1) 12’ x 14’ Overhead grade door
Butler insulated metal panel (IMP) siding
Butler MR-24 standing seam roof
Storefront glazing windows and full glass double storefront doors in office area
Clearstory storefront windows in warehouse area
Recessed loading dock with (4) 10’ x 10’ overhead doors and dock levelers
(3) Optional overhead bridge cranes

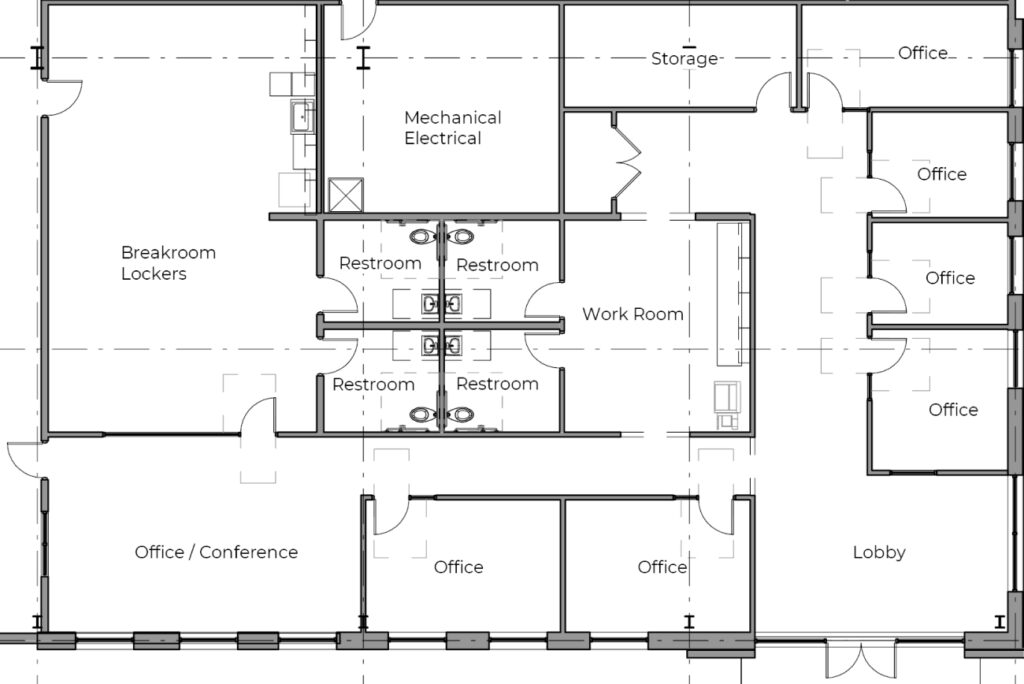

Build to suit office needs
(6) Offices & (1) conference room
(4) Single occupant restrooms
Breakroom with lockers
(1) Work room with casework
200 Amp, three phase electrical service, LED lighting, exterior illumination
Utility allowance
4” Thick concrete slab figured in office area and 6” in warehouse/shop area
Office area has 16’ masonry wainscot and 8’ wainscot with leveling course around rest of building perimeter
Front entrance has architectural metal siding and pre-engineered metal canopy
Architectural enhancements suitable for typical protective covenant requirements
All architectural and engineering fees and building plan approvals included
